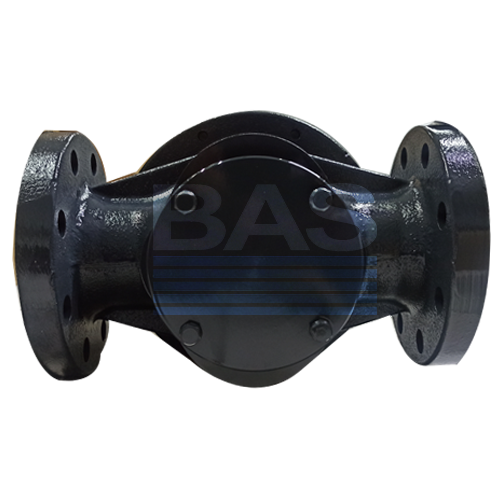

Tokico Flow Meter 3 Inchi Reset

5 star rating product Tokico Flow Meter 3 Inchi Reset (99)
Call For Price
ready stock image In Stock
ready to ship image Ready To Ship
Untuk informasi lebih jelas dan lengkap anda dapat menghubungi tim kami disini

Details

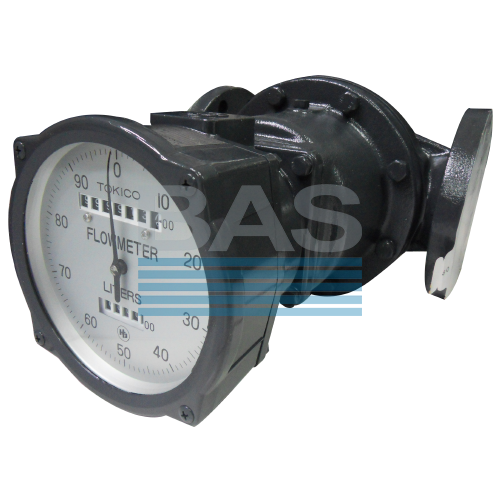

Tokico Flow Meter 3 Inch Reset, the calculation process can start from the number 0. So that every time you use the flow meter, the user can find out the amount of flow entering or leaving at that time. In this reset flow meter unit, the counter display has 2 columns, namely the totalizer to determine the amount of accumulated liquid that has been removed or entered and secondly there is a liters column which is useful for viewing the liquid entering or leaving when the flow meter is run.

Tokico Flow Meter 3 Inch Reset is included in the positive displacement flowmeter.
The Tokico flow meter material is made of cast iron, which is why Tokico cannot be used for liquid water because if used for water, the flow meter material will rust easily.

Positive displacement type flow meters can be used at relatively high rotational speeds, resulting in a compact design. Additionally, this meter counting unit is compact yet easy to read, and its construction is simple.

Features

Liquid used : Kerosene, light oil (gasoline, diesel), heavy oil (oil, crude marine oil, crude palm oil)

Accuracy : ± 0.5%

Size : 3 Inchi

Flow Range:
Kerosene, Light Oil : 3,500~35,000 l/h
Class A Heavy Oil (Oil) : 600~40,000 l/h
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 300~40,000 l/h

Liquid Viscosity:
Kerosene, Light Oil : 1.2cP~3cP
Class A Heavy Oil (Oil): 10cP
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 50cP~300cP

Maximum Pressure: 10 Kgf/cm2
Hydraulic Pressure Test : 20 Kgf/cm2

Maximum Temperature : 100°C

Material: Cast Iron

Resources

Butuh informasi lebih lanjut?

Unduh informasi produk dibawah ini atau chat dengan tim ahli kami.

Product Dimension image Dimension

30 cm x 30 cm x 50 cm

Warranty Info icon Warranty Info

Each product has an after sales warranty and unit repairs outside of spare parts

We also offer various types and sizes of digital Tokico Solar Flow Meters, including Tokico Flow Meter 2 Inch Reset, Tokico Flow Meter 1 1/2 Inch Reset, as well as other variants available.


Shipping Info icon Shipping Info

Delivery to Jakarta and surrounding areas can be done by our logistics team. Apart from that, shipping uses an expedition service.
