Details

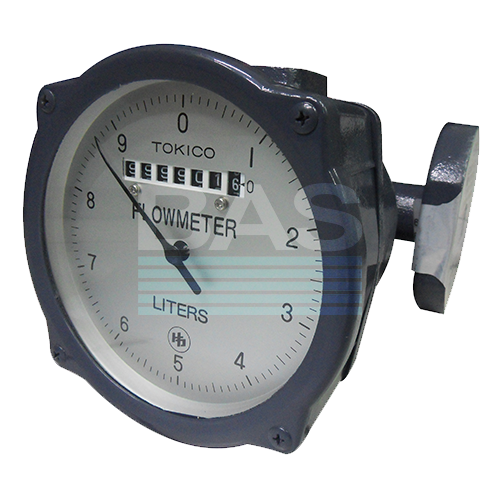

Tokico Flow Meter 3/4 Inch Non Reset, the calculation process cannot be reset or cannot be calculated starting from 0 again. The calculation process is continuous from the start of use to the end of use. So what is visible on the counter is the accumulated value from usage calculations only.
Tokico Flow Meter 3/4 Inch Non Reset is included in the positive displacement flowmeter type.
The Tokico flow meter material is made of cast iron, which is why Tokico cannot be used for liquid water because if used for water, the flow meter material will rust easily.
Positive displacement type flow meters can be used at relatively high rotational speeds, resulting in a compact design. Additionally, this meter counting unit is compact yet easy to read, and its construction is simple.
Features
Liquid used : Kerosene, light oil (gasoline, diesel), heavy oil (oil, crude marine oil, crude palm oil)
Accuracy : ± 0.5%
Size : 3/4 Inchi
Flow Range:
Kerosene, Light Oil : 120~1,250 l/h
Class A Heavy Oil (Oil) : 20~1,250 l/h
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 10~1,250 l/h
Liquid Viscosity:
Kerosene, Light Oil : 1.2cP~3cP
Class A Heavy Oil (Oil): 10cP
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 50cP~300cP
Maximum Pressure: 10 Kgf/cm2
Hydraulic Pressure Test : 20 Kgf/cm2
Maximum Temperature : 80°C
Material: Cast Iron
Resources
Butuh informasi lebih lanjut?
Unduh informasi produk dibawah ini atau chat dengan tim ahli kami.
Dimension
30 cm x 30 cm x 50 cm
Warranty Info
Each product has an after sales warranty and unit repairs outside of spare parts
We also offer various types and sizes of Tokico Solar Flow Meter Non Reset, including Tokico Flow Meter 1 Inch Non Reset, Tokico Flow Meter 1/2 Inch Non Reset, as well as other available variants.
Shipping Info
Delivery to Jakarta and surrounding areas can be done by our logistics team. Apart from that, shipping uses an expedition service.
