Tokico Flow Meter 2 Inchi Electronic Oil Digital

5 star rating product Tokico Flow Meter 2 Inchi Electronic Oil Digital (99)
Call For Price
ready stock image In Stock
ready to ship image Ready To Ship
Untuk informasi lebih jelas dan lengkap anda dapat menghubungi tim kami disini

Details

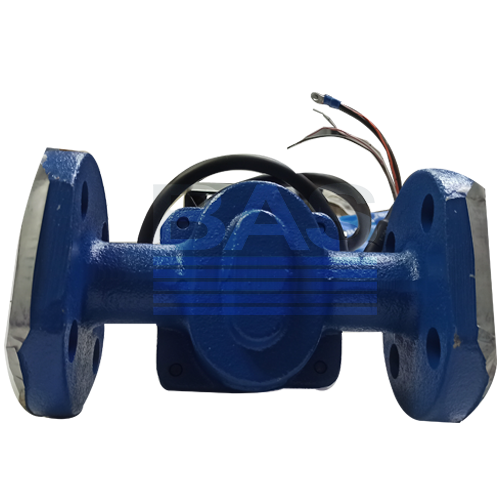

The Tokico Flow Meter 2 Inchi Electronic Oil Digital displacement type flow meter which is widely used exclusively in the measurement of fuel oil for boiler and diesel engine oil etc. Wide flow range and high accuracy. Visible total units. Total counter, reset, counter and instantaneous flow rate can be activated and displayed. In addition, the instantaneous flow rate display can be changed in hourly and minute views. Multi-function totalization unit. Forward and reverse flow detection. Excellent durability. As a contactless rotor, there is no mechanical wear, and almost no secular change in long time operation. Remote measurement. It sends an output pulse which is proportional to the number of rotations of the rotor.

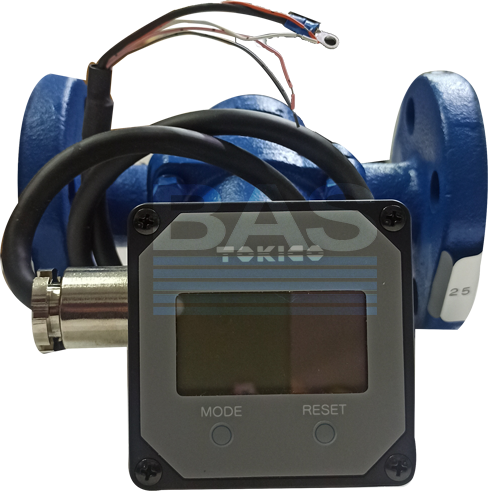

The wide display of the counter screen also makes it easier for users to see the calculations. The counter is made of plastic material, also the viewing angle can be adjusted more than 90° with each direction up or down in 15° steps. While the body is made of iron (cast iron).

Tokico Flow Meter 2 Inchi Electronic Oil Digital is available for flow meters with a Pulse Transmitter and without a Pulse Transmitter.

Features

Liquid used : Kerosene, light oil (gasoline, diesel), heavy oil (oil, crude marine oil, crude palm oil)

Accuracy : ± 0.5%

Size : 2 Inch

Flow Range:
Kerosene : 2~13 m³/h
Light Oil : 1.5~15 m³/h
Class A Heavy Oil (Oil): 0.25~15 m³/h
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 0.25~13 m³/h

Maximum Pressure: 1 MPa
Hydraulic Pressure Test : 2 MPa
Flange : JIS 10K

Maximum Temperature:
Kerosene, Light Oil : 50°C
Heavy Oil : 100°C

Material: Cast Iron

Resources

Butuh informasi lebih lanjut?

Unduh informasi produk dibawah ini atau chat dengan tim ahli kami.

Product Dimension image Dimension

332 x 250 (mm)

Warranty Info icon Warranty Info

Each product has an after sales warranty and unit repairs outside of spare parts

We also offer various types and sizes of digital Tokico Solar Flow Meters, including Tokico Digital Electronic Flow Meter 1 1/2 Inch, Tokico Flow Meter 1 Inch Electronic CCG Digital, as well as other variants available.

Shipping Info icon Shipping Info

Delivery to Jakarta and surrounding areas can be done by our logistics team. Apart from that, shipping using an expedition service.
